Perimeter Pallets

Browse 9 models

Select a model to open its own image and exact specifications.

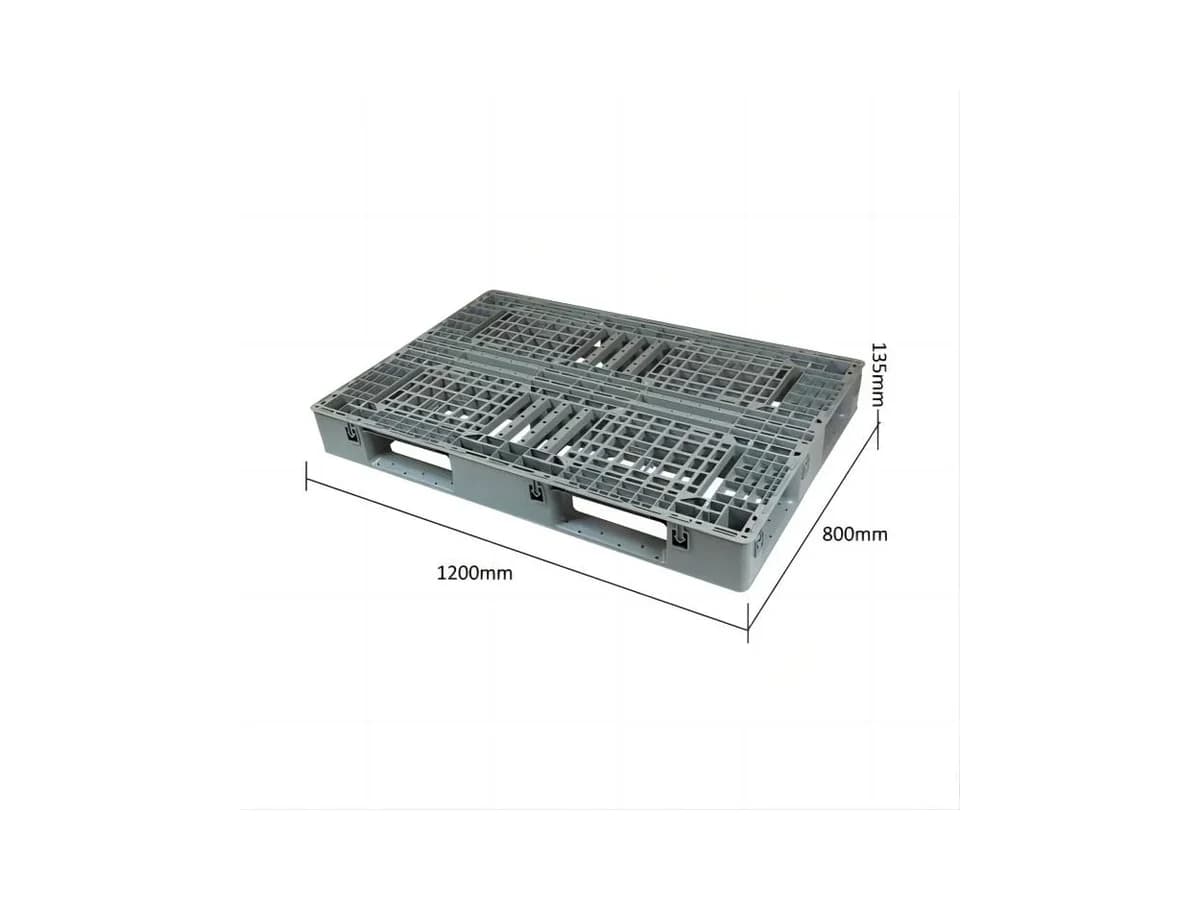

Plastic Pallet 1200 × 800 × 135mm — Double Faced base

PL4-PLT-EU1208-TView model →

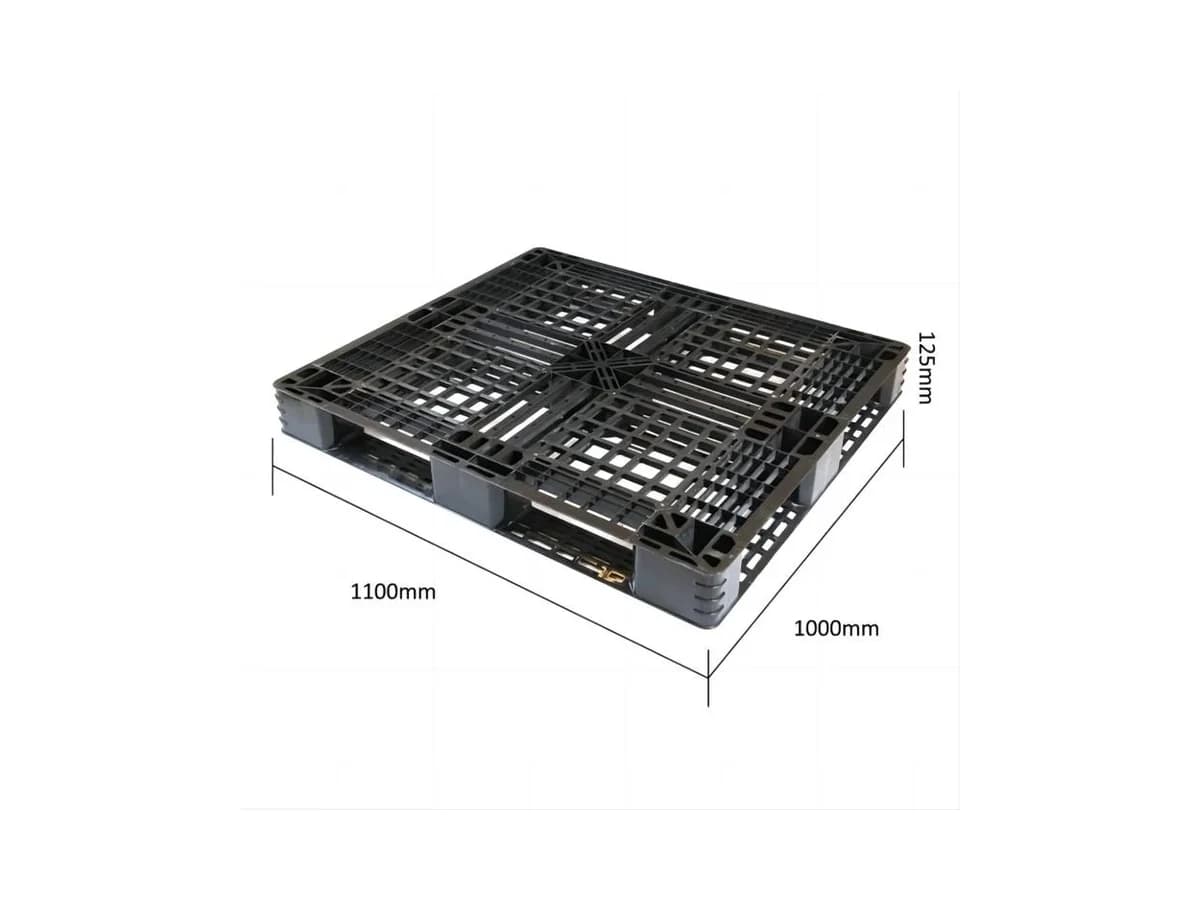

Plastic Pallet 1100 × 1000 × 125mm — Double Faced base

PL4-PLT-1110-TBView model →

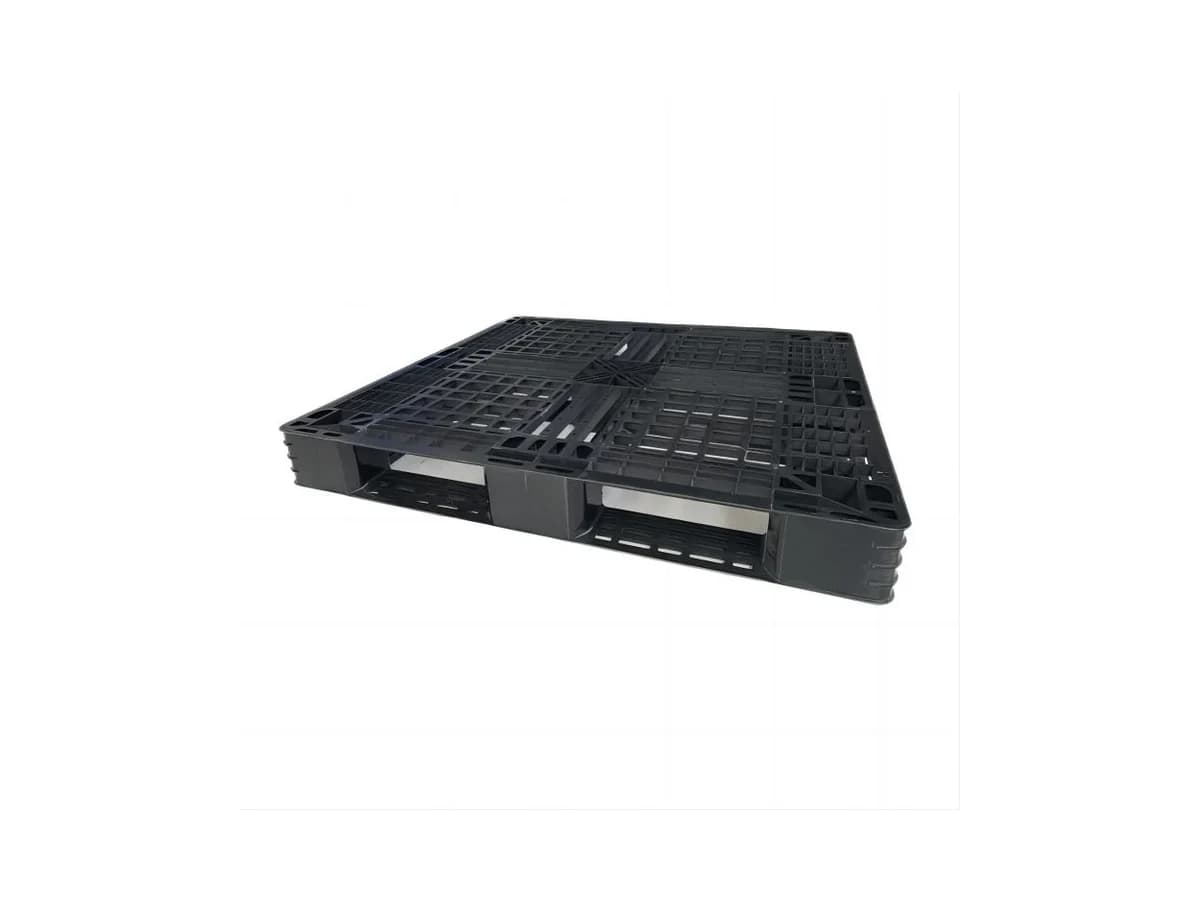

Plastic Pallet 1100 × 1100 × 125mm — Double Faced base

PL4-PLT-1111-TBView model →

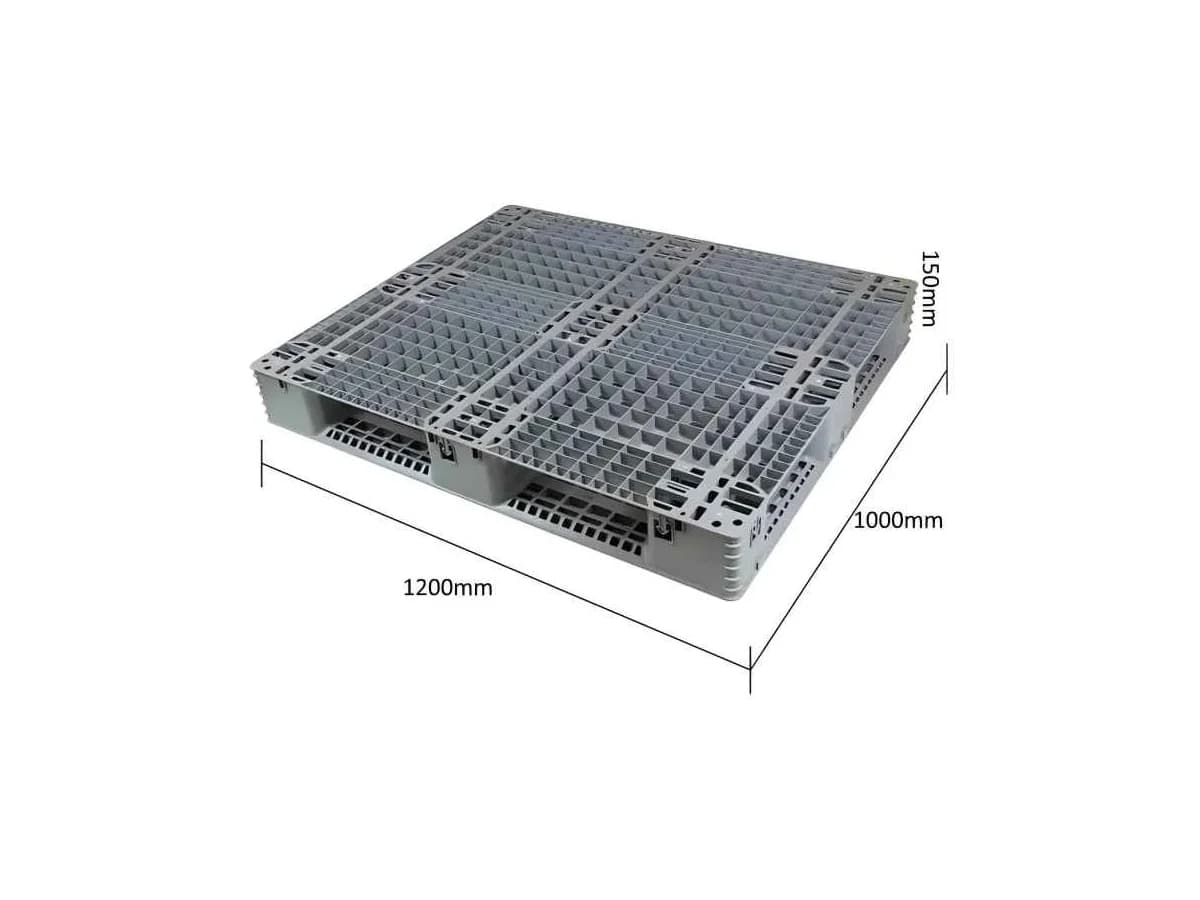

Plastic Pallet 1200 × 1000 × 150mm — Grid deck / Double Faced base

PL4-PLT-1210-GTView model →

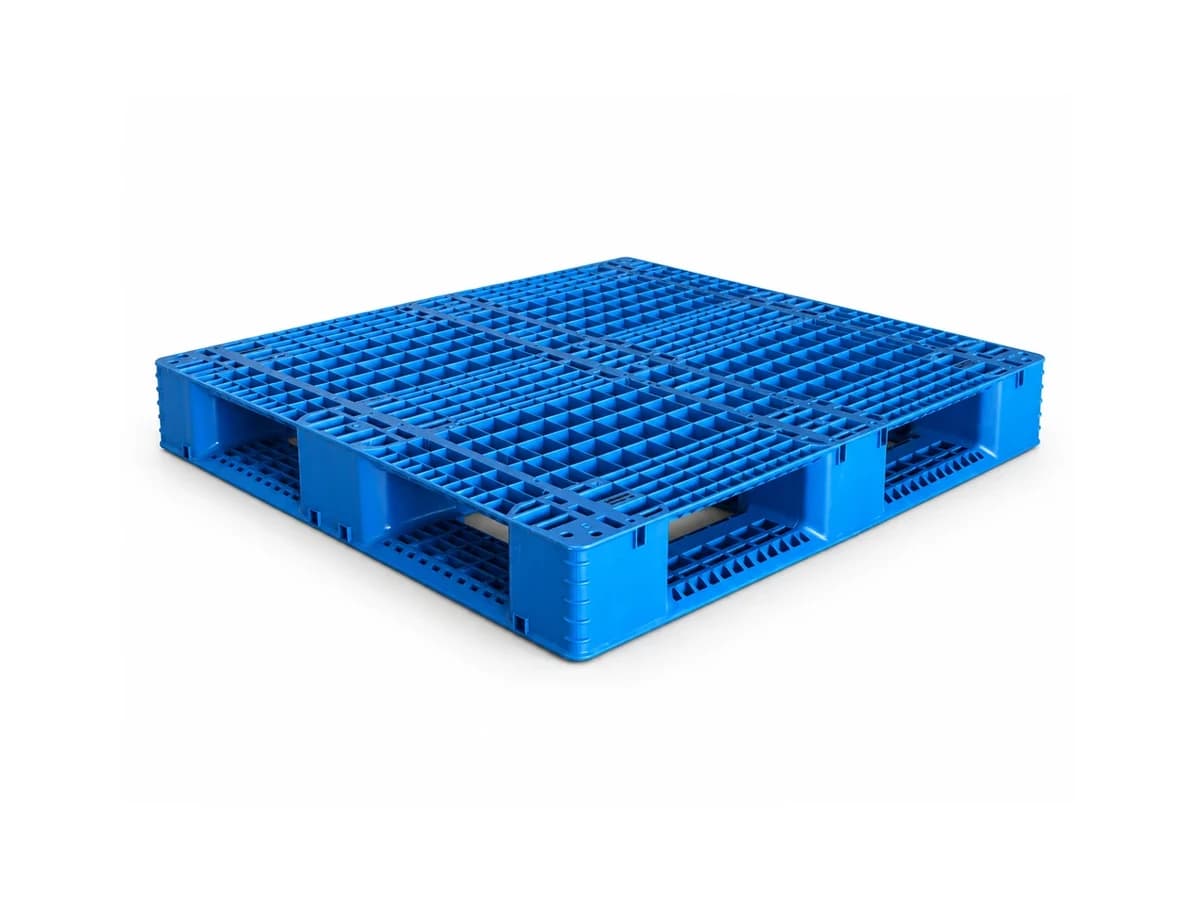

Plastic Pallet 1200 × 1000 × 150mm — Double Faced base

PL4-PLT-1210-TView model →

Double-Sided Grid Pallet 1100 × 1100 × 150mm — Grid deck / Double Faced base

PL4-PLT-1111-DSGSelected

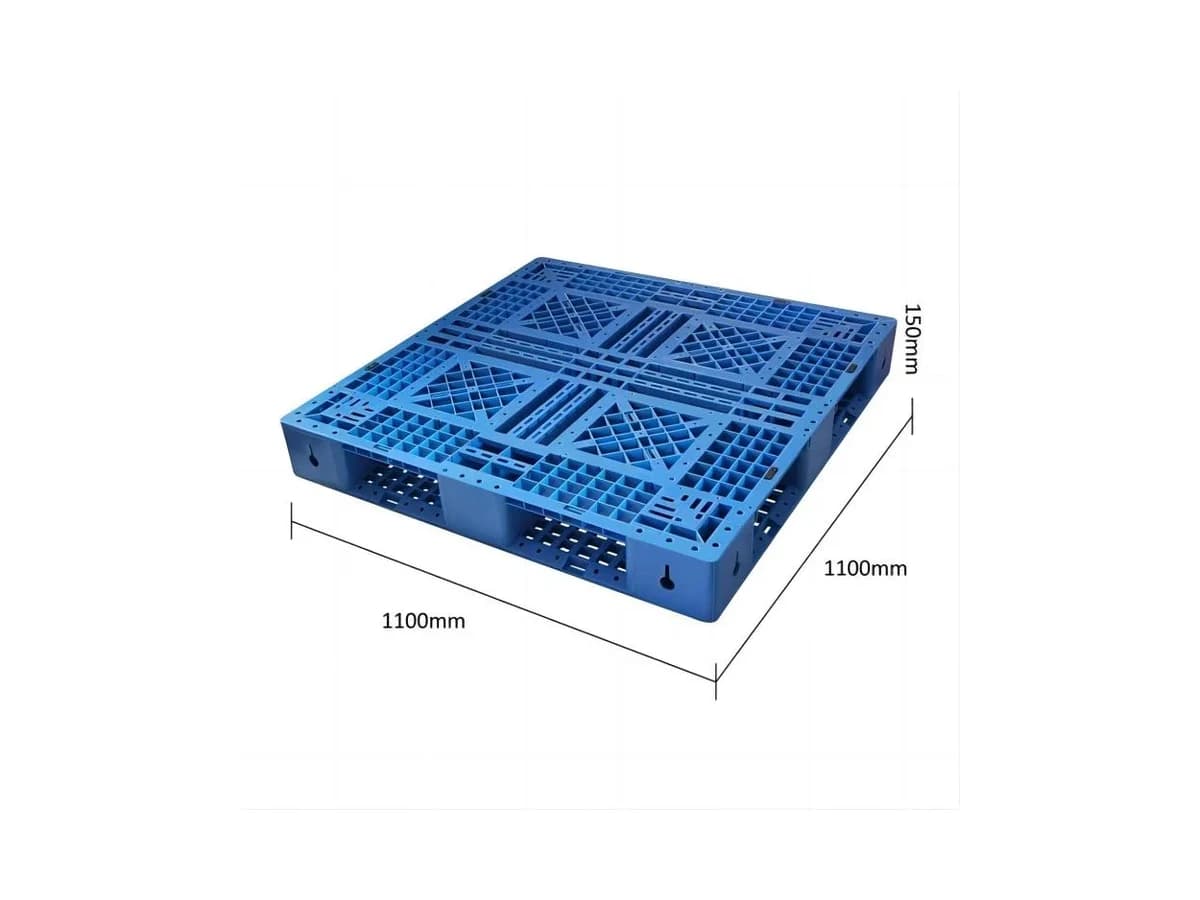

Plastic Pallet 1100 × 1100 × 150mm — Double Faced base

PL4-PLT-1111-TView model →

PL4-PLT-1111-T150View model →

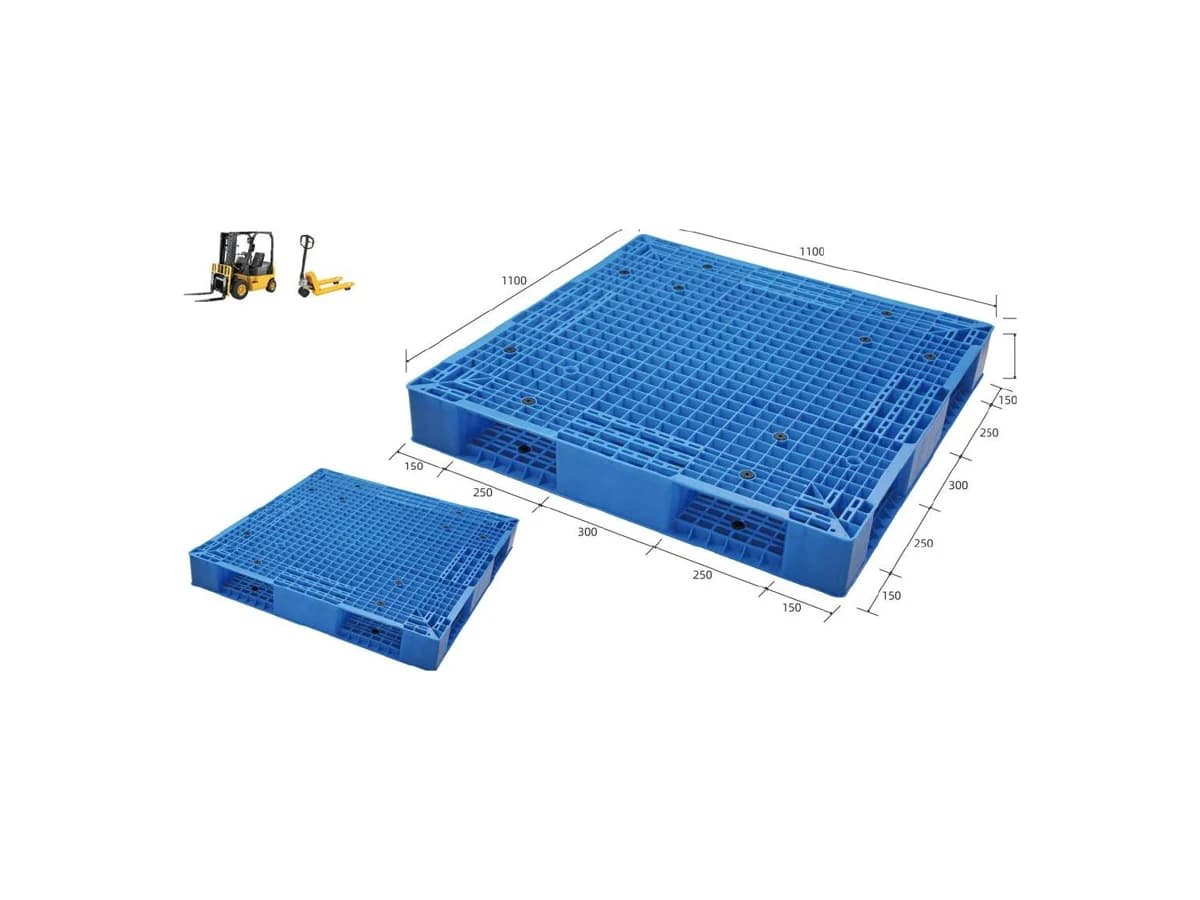

Plastic Pallet 1100 × 1100 × 160mm — Double Faced base

PL4-PLT-1111-T160View model →

Plastic Pallets

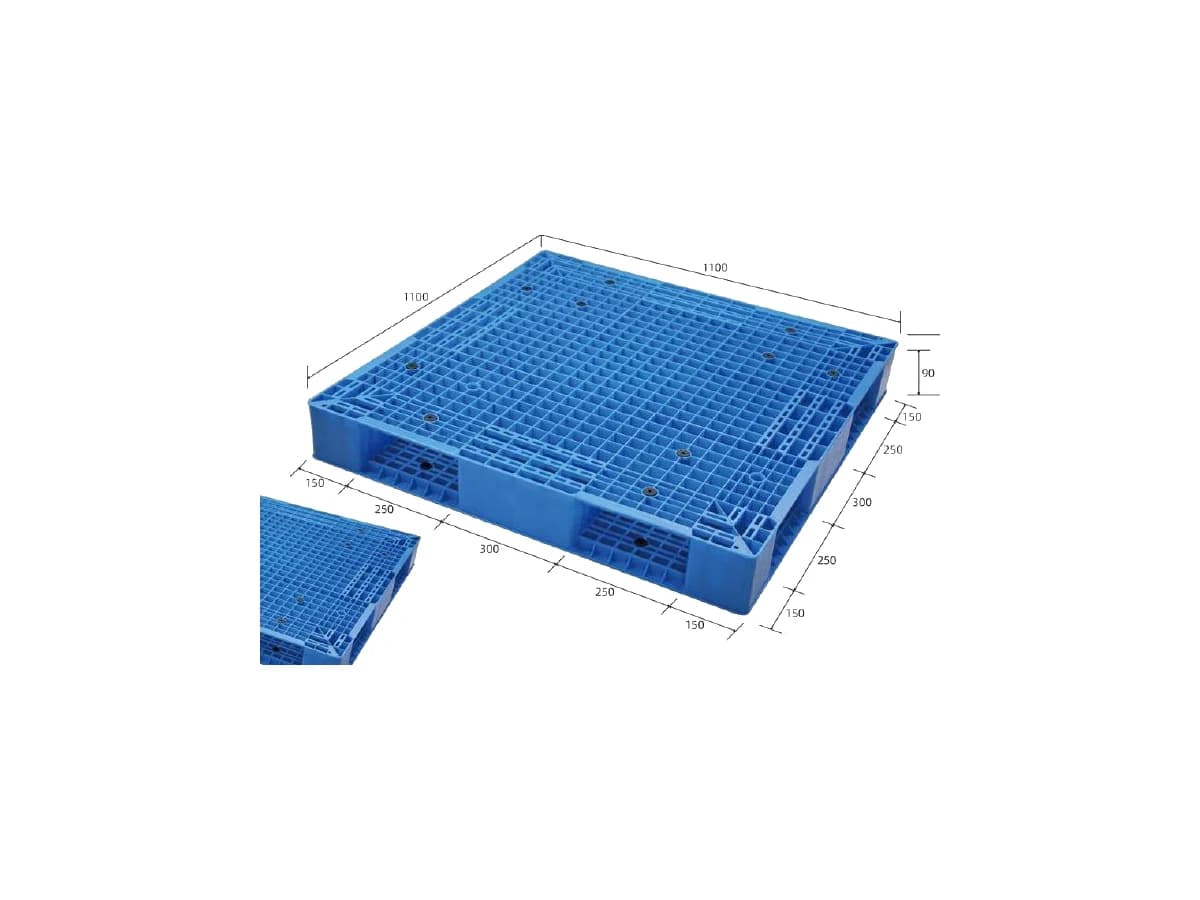

Double-Sided Grid Pallet 1100 × 1100 × 150mm — Grid deck / Double Faced base

Name: Double-Sided Grid Pallet 1100 × 1100 × 150mm — Grid deck / Double Faced base
SKU: PL4-PLT-1111-DSG

Model PL4-PLT-1111-DSG

HDPE material-handling pallet. Load ratings and construction shown are supplier-catalog values for this model.

External size1100 × 1100 × 150 mm

MaterialImpact-resistant HDPE

Deck / baseGrid / Double Faced

Static load5,000 kg

Dynamic load1,000 kg

Variants9 models

Order basisMOQ confirmed on quote — container orders are typical

View all 9 model configurations →

Quantity (units)

Review this model and quantity with your other selections before sending.

Plan shipment for 1 units

Model PL4-PLT-1111-DSG

Final dimensions, options, documents, MOQ and packing are confirmed for the quoted configuration.

Choose from 9 models

Check the configuration as well as the dimensions. Different models may share the same size. Selecting a model opens its own image and exact product record.

View all 9 models as an image gallery

All models in this product family
Model	Configuration	Material	Rack / stack load
PL4-PLT-EU1208-T	1200 × 800 × 135 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1110-TB	1100 × 1000 × 125 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1111-TB	1100 × 1100 × 125 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1210-GT	1200 × 1000 × 150 mm · Grid deck · Double Faced base	HDPE	Not provided
PL4-PLT-1210-T	1200 × 1000 × 150 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1111-DSGSelected	1100 × 1100 × 150 mm · Grid deck · Double Faced base	Impact-resistant HDPE	Not provided
PL4-PLT-1111-T	1100 × 1100 × 150 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1111-T150	1100 × 1100 × 150 mm · Double Faced base	HDPE	Not provided
PL4-PLT-1111-T160	1100 × 1100 × 160 mm · Double Faced base	HDPE	Not provided

Technical specifications

Product family: Plastic Pallets
Product type: Perimeter Pallets
External dimensions: 1100 × 1100 × 150 mm
Material: Impact-resistant HDPE
Static load: 5,000 kg
Dynamic load: 1,000 kg
Deck / base: Grid / Double Faced
Entry: Four-way forklift / pallet-truck entry

View supplier-provided specification text

Impact-resistant HDPE

40HQ planning context

Rough volume estimate336 units

Basis: Recorded product volume

• Uses product volume and an 80% planning stow factor; this is not a floor-load or packing plan.
• Payload, orientation, palletisation, voids and bracing are not included.

Open container planner

Options & compatibility

Options are confirmed against the selected model and application.

Applications

WarehousingExport LogisticsManufacturingMaterial Handling

Documents & quality

No product-specific public document is attached to this record. Required declarations, drawings and inspection points can be requested with the quote.
